Audi 3.0T Gen 1 Heater Pipe - Aluminum Upgrade (Uro Parts)
Audi 3.0T Gen 1 Heater Pipe - Aluminum Upgrade (Uro Parts)
Regular price
$79.00
Sale price
$79.00
Regular price
$79.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Documentation
Question about this product?
We're happy to help.
Overview

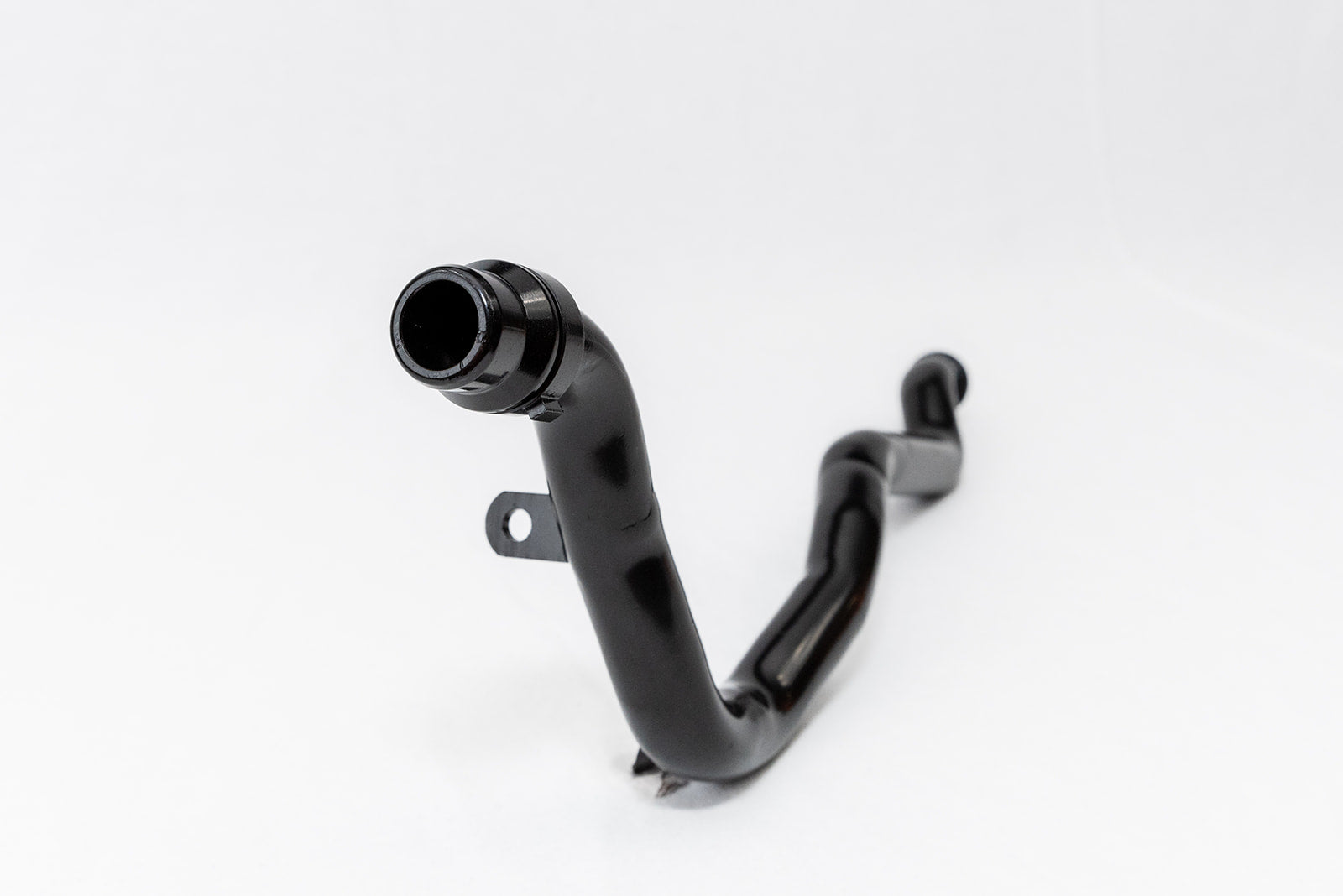

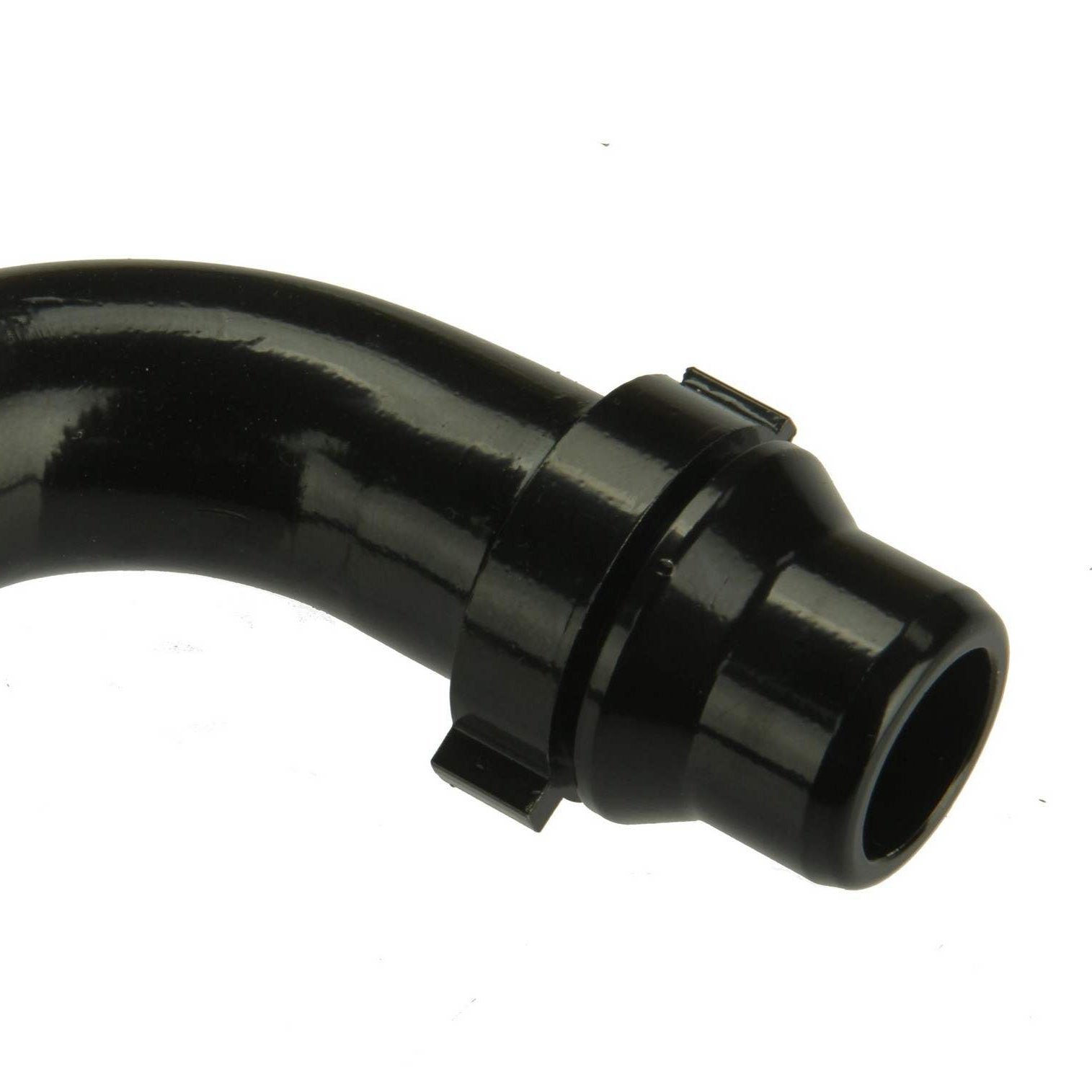

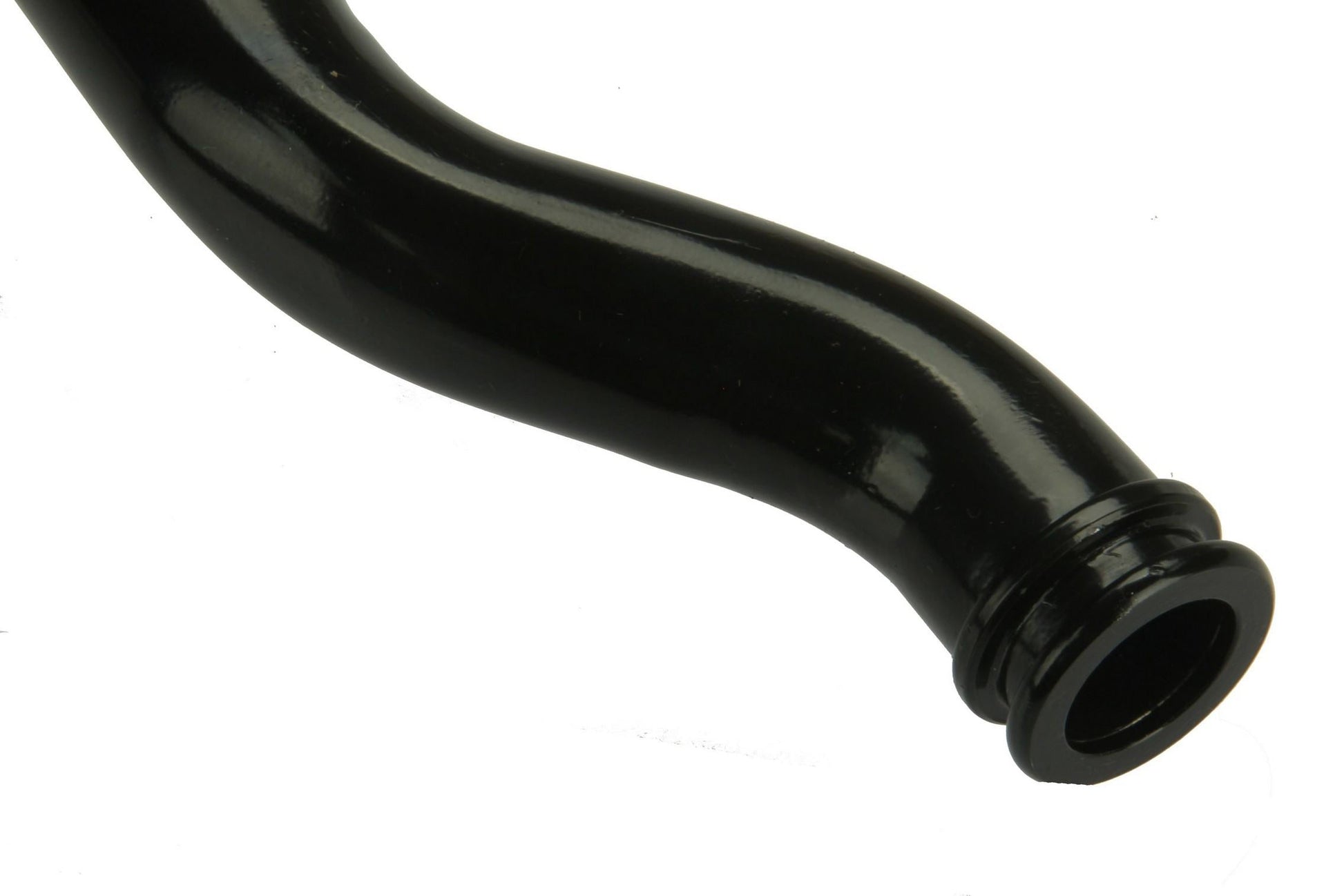

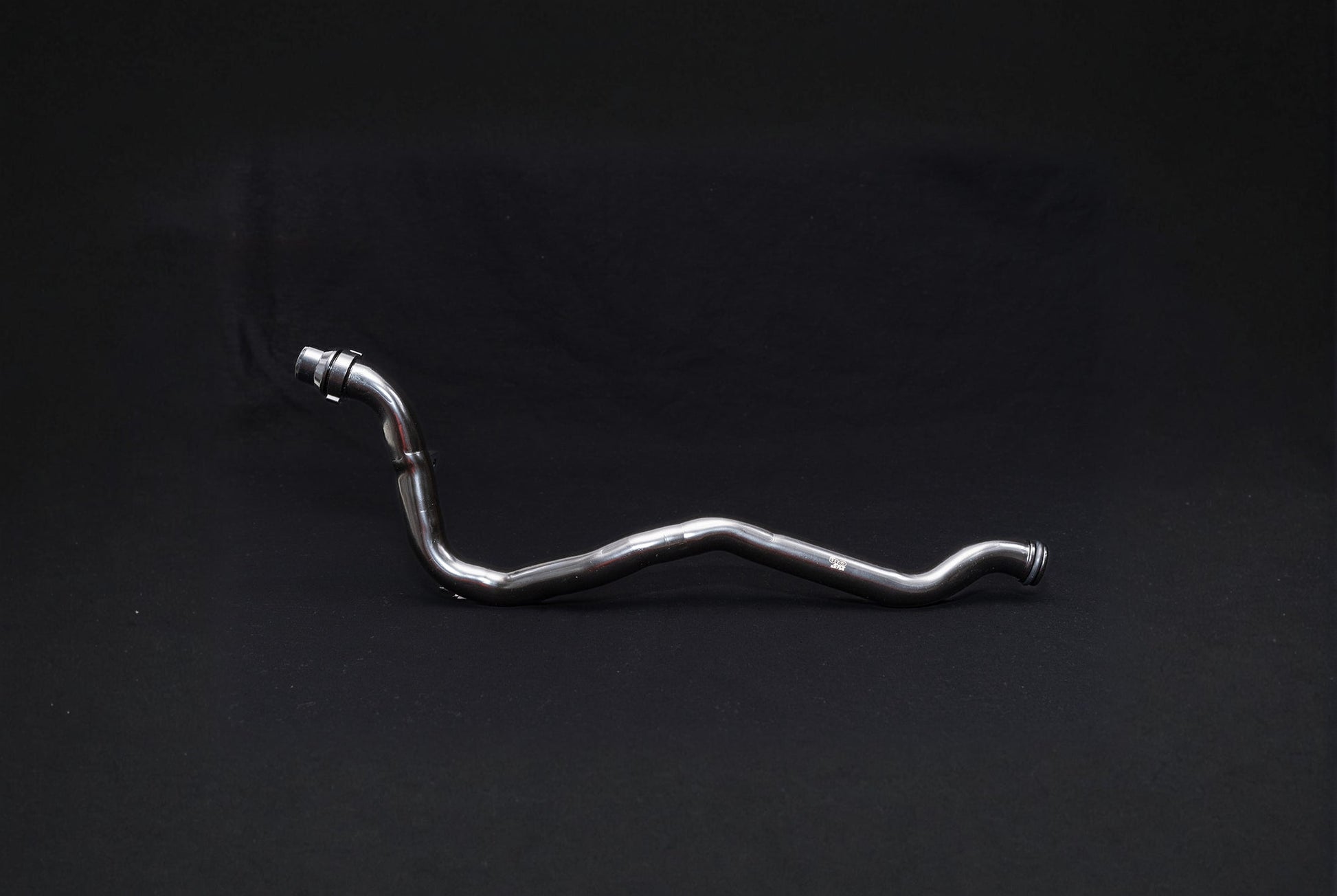

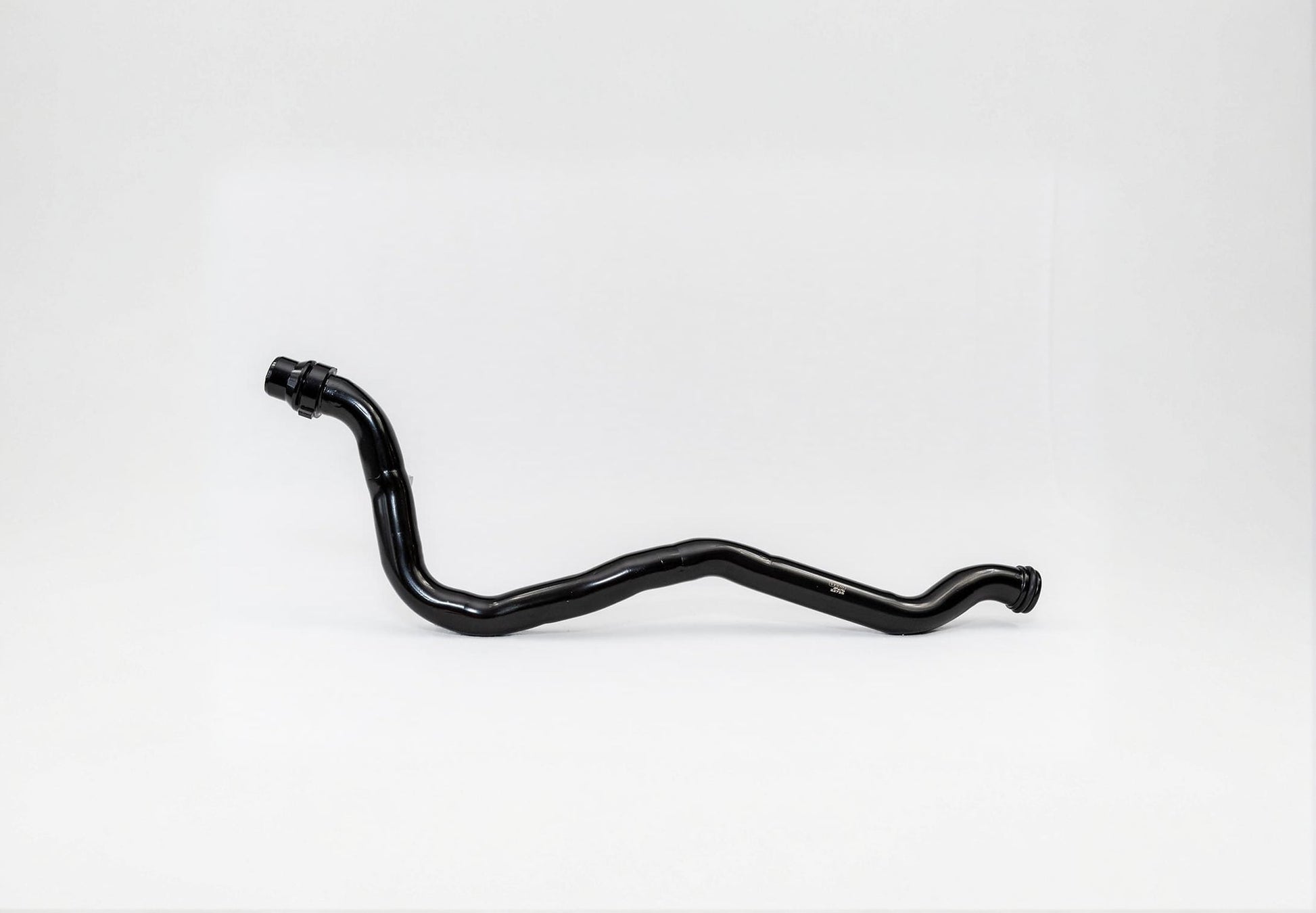

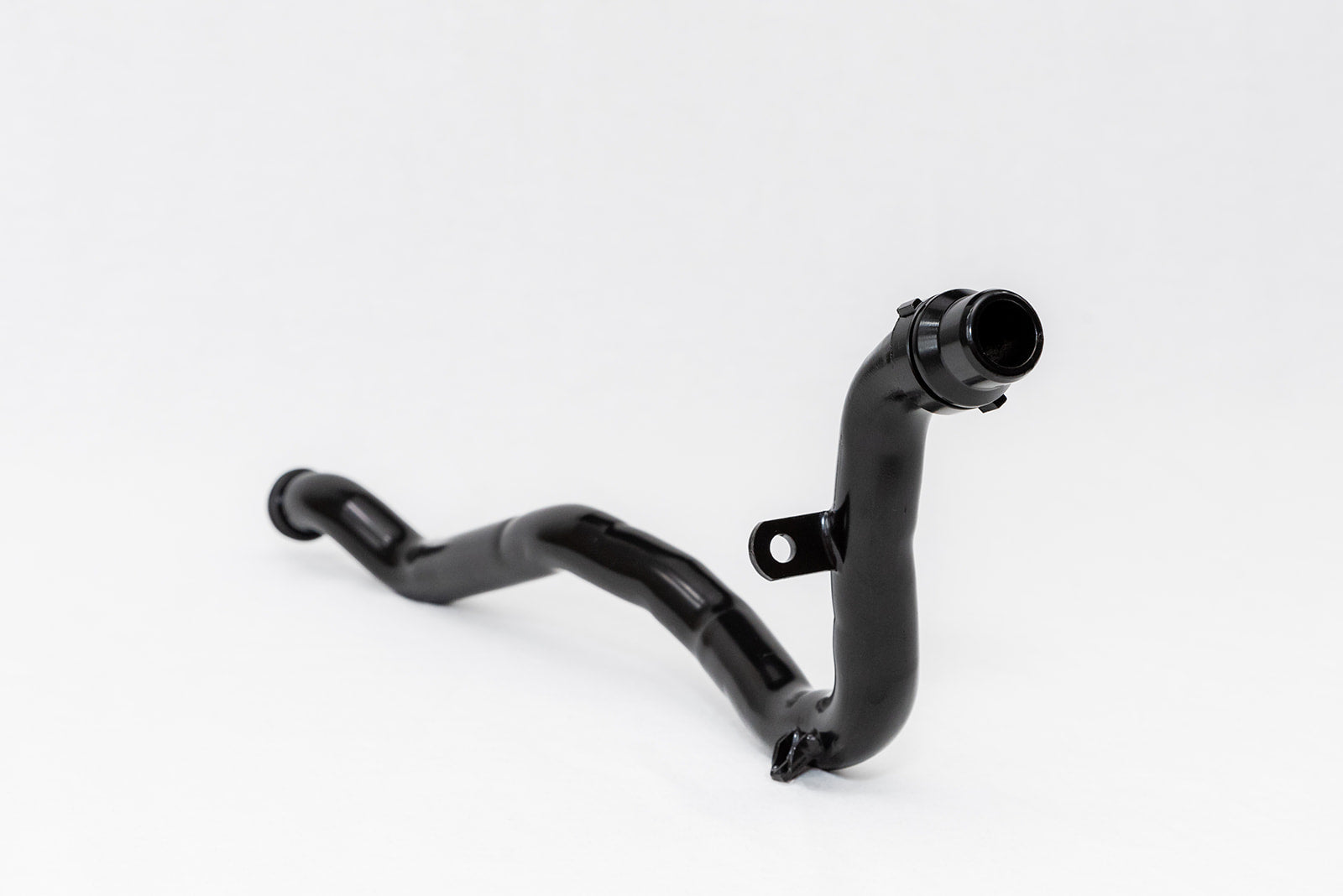

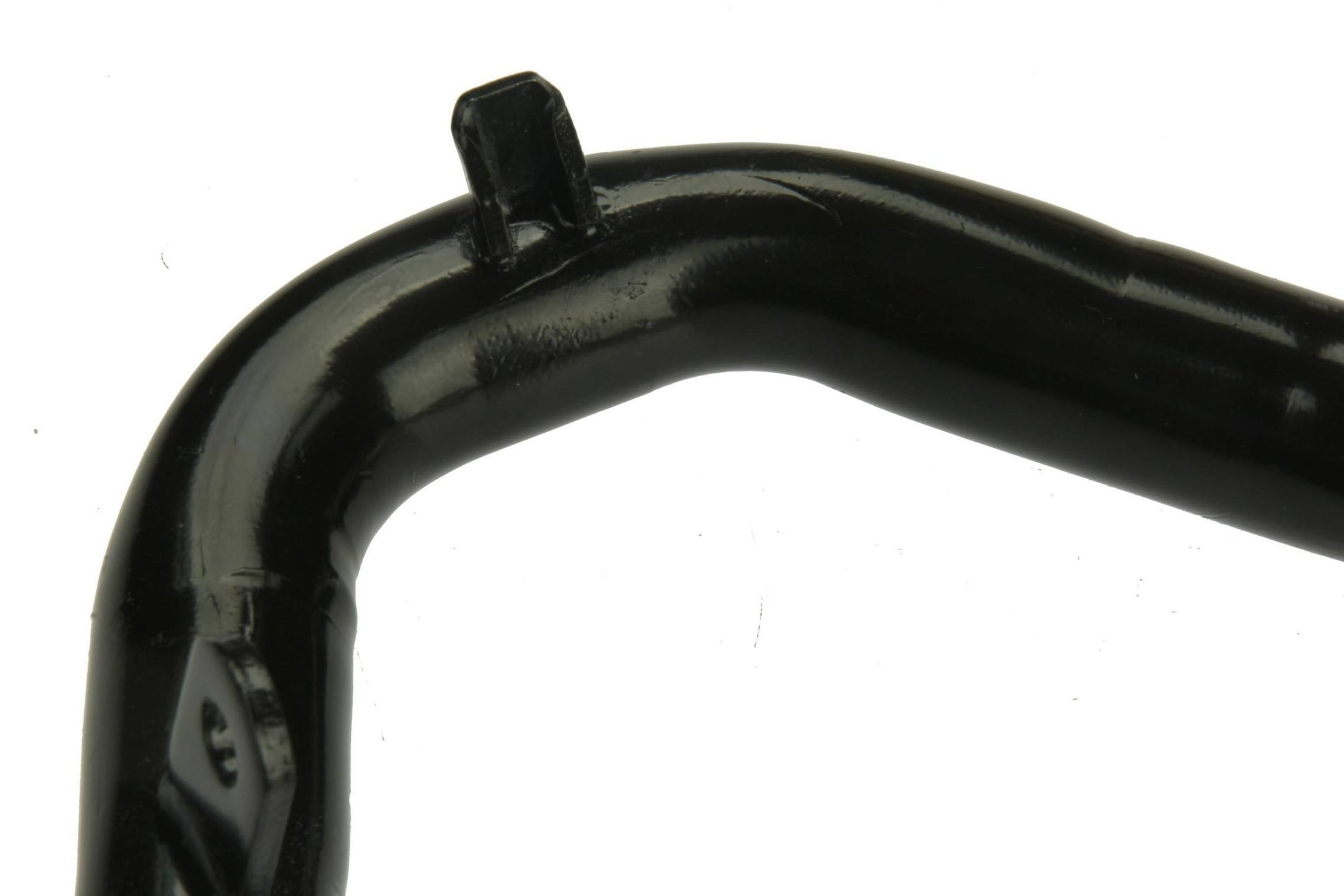

The factory 3.0T heater pipe (OEM 06E121065N) is constructed from plastic that deteriorates over time under repeated heat cycling and coolant system pressure. The result is cracking, coolant leaks, and coolant loss deep in the engine valley — an area only accessible with the supercharger removed. This Uro Parts aluminum heater pipe is a direct replacement that permanently eliminates that failure point.
Compatible with Audi 3.0T Gen 1 supercharged TFSI applications including the B8/B8.5 S4, S5, Q5, SQ5, and C6/C7 A6, A7, A8, and Q7, this aluminum upgrade handles high temperatures and pressure cycles without the degradation inherent to OEM plastic. Best installed during any supercharger-off service such as carbon cleaning, thermostat replacement, or other under-supercharger maintenance — and is part of the Under Supercharger Kit.
Specifications
| Material | Aluminum |
| Replaces OEM Part | 06E121065N |
| Compatible Engine Codes | CAKA, CCAA, CCBA, CCDA, CGWA, CGWB, CGXC, CTUA, CTUB |
| Compatible Vehicles | B8/B8.5 S4, S5, Q5, SQ5; C6/C7 A6, A7, A8, Q7 |
| Application | Audi 3.0T Gen 1 Supercharged TFSI |
| Installation | Supercharger removal required |
Features & Benefits
✓
All-Aluminum ConstructionNo plastic components means no deterioration from heat cycling or coolant pressure — the OEM failure point is permanently eliminated.
✓
Direct OEM ReplacementPrecision-engineered as a drop-in replacement for OEM part 06E121065N with perfect fitment and no modification required.
✓
Handles High Temperature & PressureAluminum construction withstands repeated heat cycles and coolant system pressure that cause factory plastic pipes to crack and leak.
✓
Corrosion-Resistant FinishTreated surface resists corrosion for long-term durability in the demanding under-supercharger environment.
✓
Ideal for Supercharger-Off ServiceBest installed during supercharger removal for carbon cleaning, thermostat service, or other under-supercharger maintenance to maximize labor efficiency.
✓
Lifetime Durability vs. OEM PlasticAluminum outlasts the factory plastic pipe indefinitely, making this a one-time fix for a known 3.0T Gen 1 reliability concern.
Frequently Asked Questions
Why does the factory 3.0T Gen 1 heater pipe fail?
The OEM heater pipe (06E121065N) is made from plastic that degrades over time when subjected to repeated heat cycling and coolant system pressure. This causes cracks, leaks, and coolant loss in the engine valley — an area that requires supercharger removal to access.
What are the symptoms of a failing 3.0T heater pipe?
Common symptoms include coolant leaks in the engine valley, low coolant level warnings, visible cracks in the plastic pipe, a coolant smell from the engine bay, and coolant pooling around the PCV area.
Does installation require supercharger removal?
Yes. The heater pipe is located in the engine valley beneath the supercharger, so supercharger removal is required for installation. It is best performed alongside other under-supercharger services such as carbon cleaning or thermostat replacement to maximize labor efficiency.
Which Audi models and engine codes is this compatible with?
This pipe fits Audi 3.0T Gen 1 supercharged TFSI engines with codes CAKA, CCAA, CCBA, CCDA, CGWA, CGWB, CGXC, CTUA, and CTUB — covering the B8/B8.5 S4, S5, Q5, SQ5, and C6/C7 A6, A7, A8, and Q7.
Is this part of a larger under-supercharger service kit?
Yes. This aluminum heater pipe is included as part of the Under Supercharger Kit, which groups commonly replaced components for a complete under-supercharger service in a single purchase.
