TGK Motorsport PCV Breather Line Kit - Audi EA839

The factory PCV breather hose on the EA839 engine is one of the most common failure points under heat and boost. Plastic quick-connect fittings, thin hose construction, and fragile internal check valves make it poorly suited for turbocharged crankcase pressures—especially on tuned or aggressively driven cars.

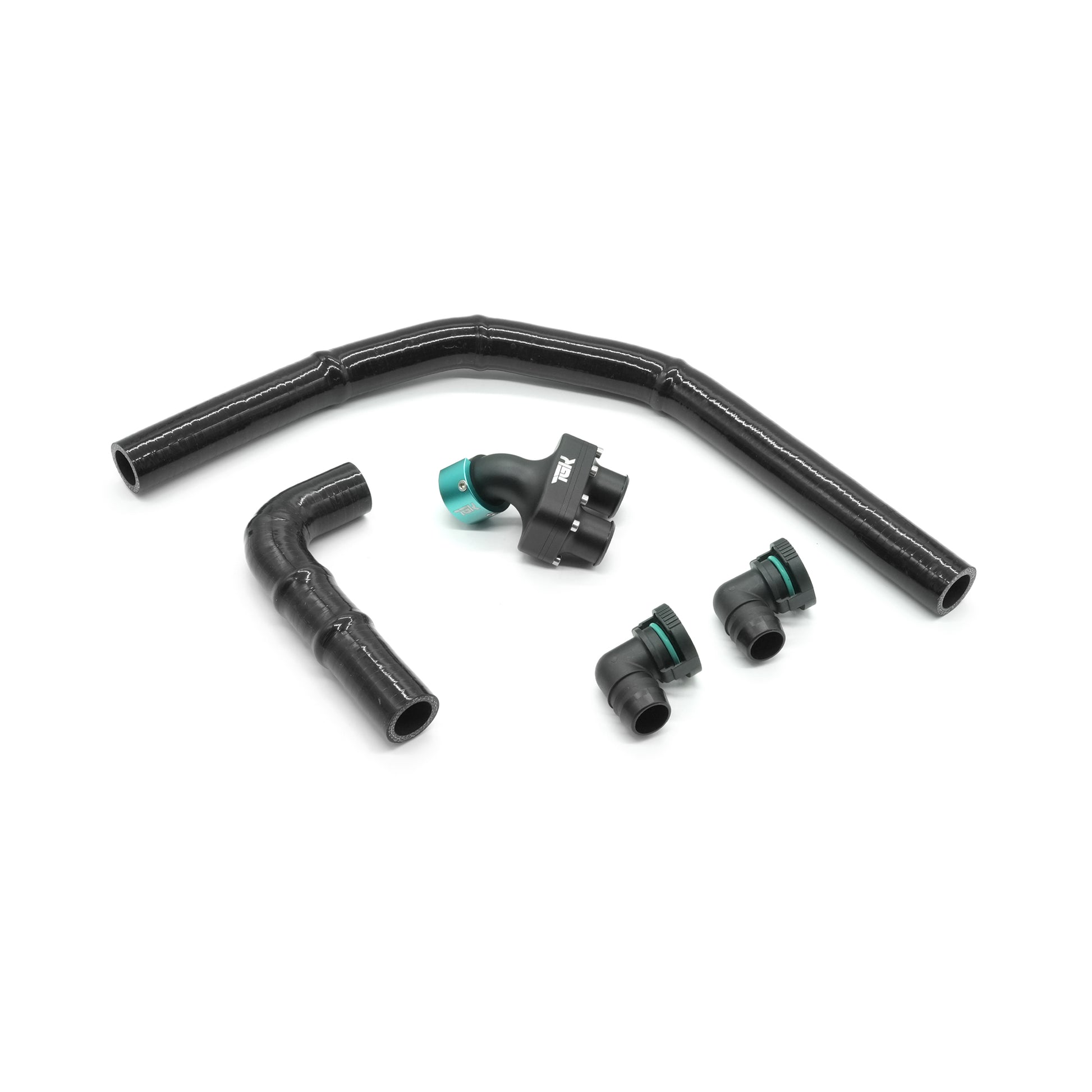

The TGK Motorsport Billet PCV Breather Hose Assembly replaces every weak point in the OEM design with materials and valve architecture intended for long-term reliability in high-temperature, high-boost environments.

Why the Factory PCV Hose Fails

Audi’s OE breather hose relies on plastic connectors and diaphragm-style check valves that degrade from repeated heat cycling. As these valves weaken, they can leak or fail entirely, allowing boost pressure to enter the crankcase.

When that happens, crankcase pressure spikes rapidly—often forcing oil out of the oil cap, dipstick tube, or seals. In severe cases, oil can be expelled onto hot engine components, creating a legitimate fire risk.

Later Audi revisions address part numbers, not the underlying design. The construction and failure modes remain the same.

TGK Motorsport Design Approach

Rather than reworking the factory concept, this assembly was designed from the ground up with a focus on valve control, material stability, and long-term service life.

Every component was selected to solve a specific failure mode found in the OEM system.

Key Design Features

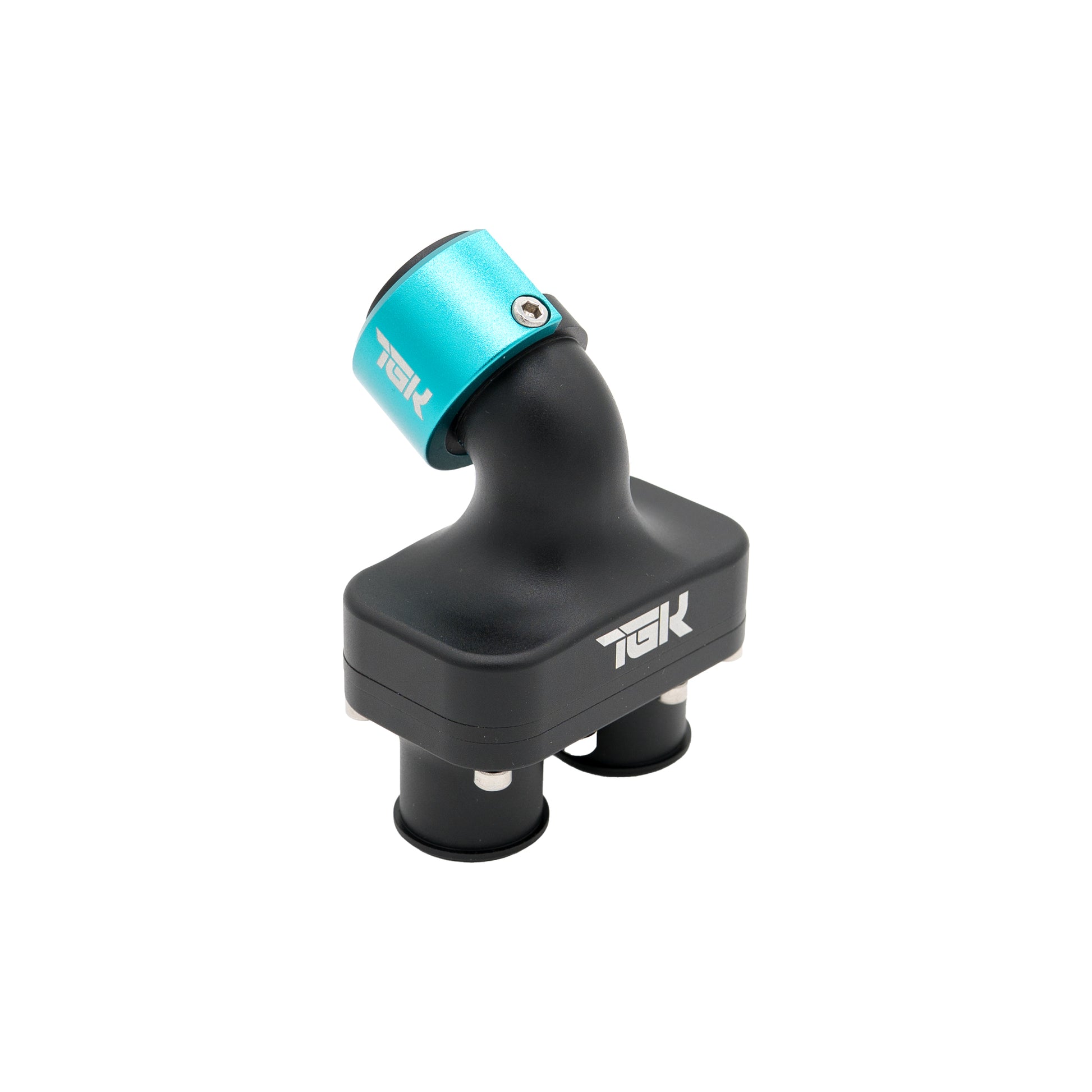

Precision Piston-Style Check Valves

The internal check valves use a machined piston design instead of flexible diaphragms. This provides immediate sealing under boost, higher effective flow area, and consistent operation regardless of heat or oil vapor exposure. Each valve is pressure-tested beyond 40+ PSI to ensure reliable operation well outside stock operating conditions.

CNC-Machined 6061-T6 Aluminum Fittings

All connection points are billet 6061-T6 aluminum—no molded plastic. This eliminates cracking, heat fatigue, and deformation while maintaining precise sealing surfaces for long-term leak prevention.

FKM-Lined, Multi-Ply Silicone Hose

The hose itself is constructed from reinforced silicone with an inner FKM fluoroelastomer liner. The FKM barrier prevents oil vapor saturation and external “weeping,” keeping the hose clean and structurally stable over time. Oil-soaked hoses are not normal—and they’re not acceptable.

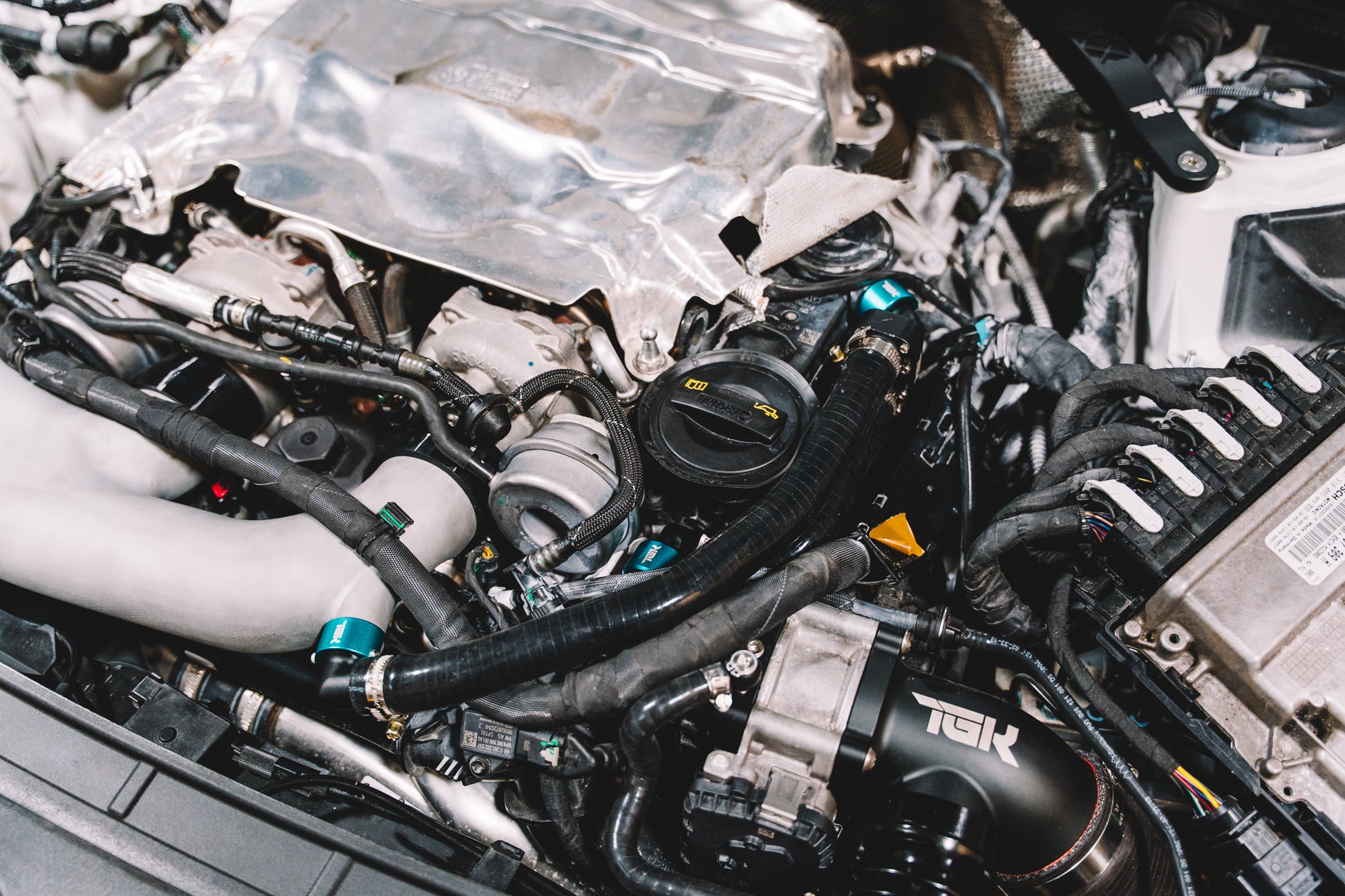

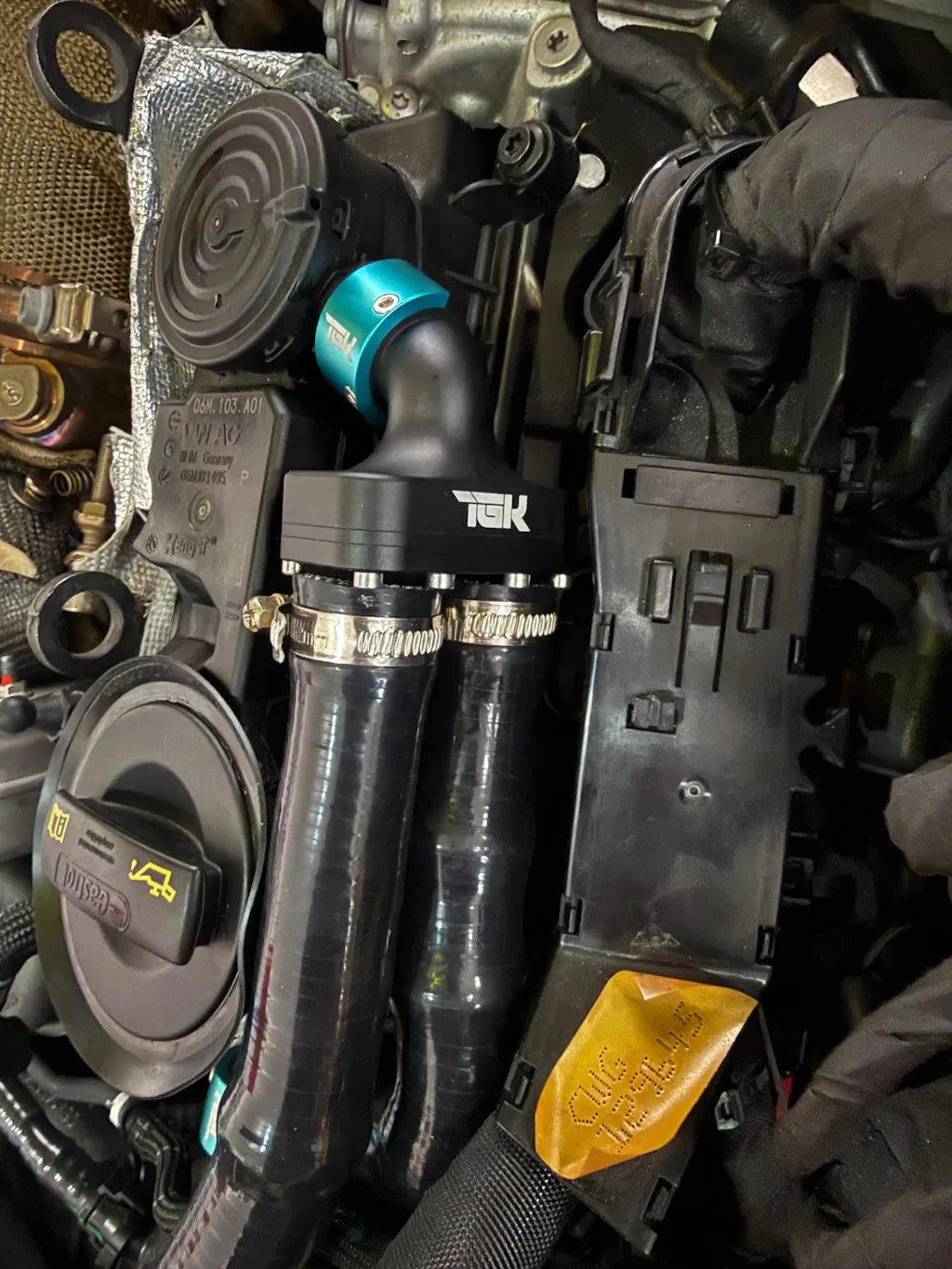

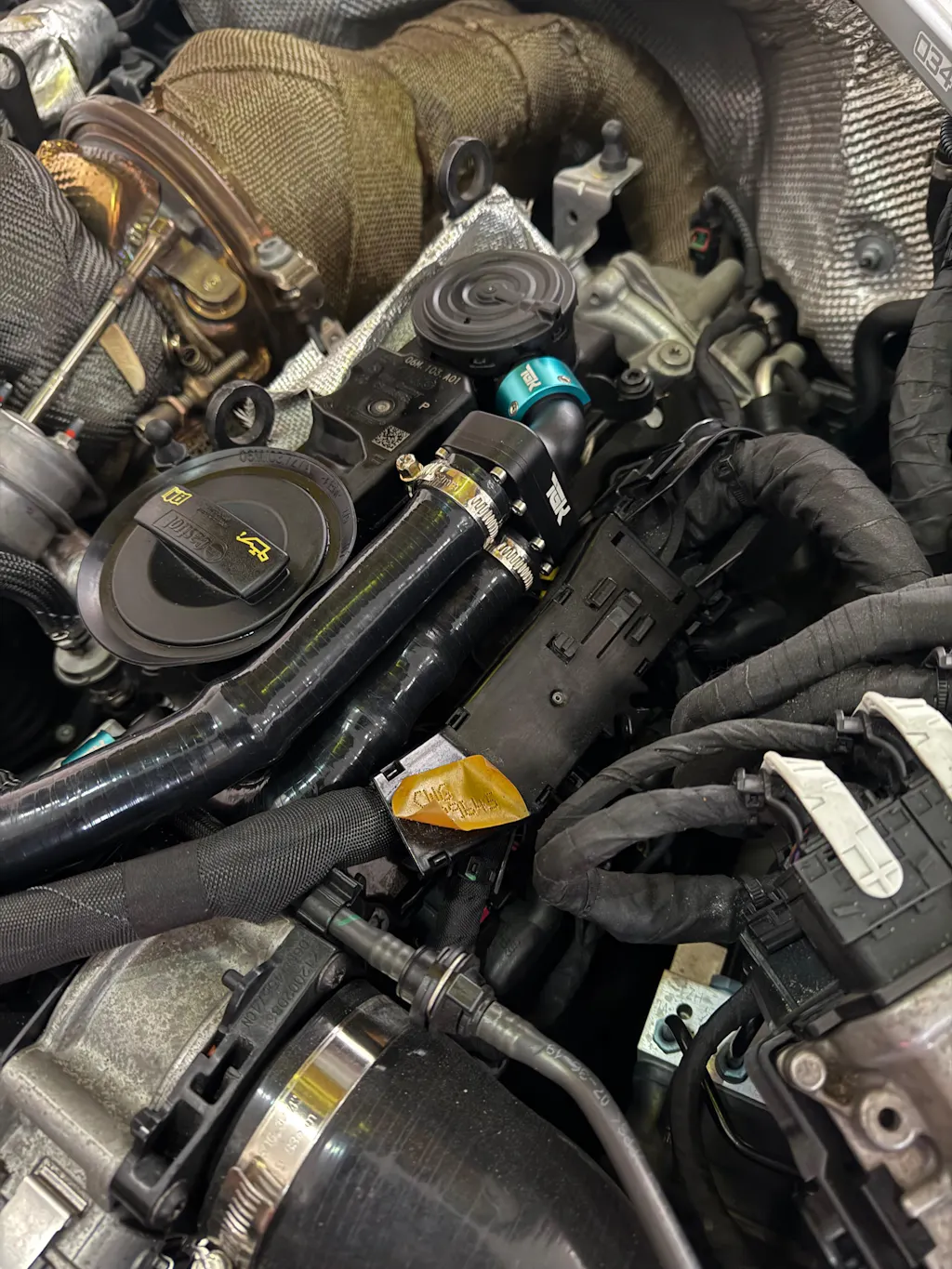

OE-Correct Routing and Fitment

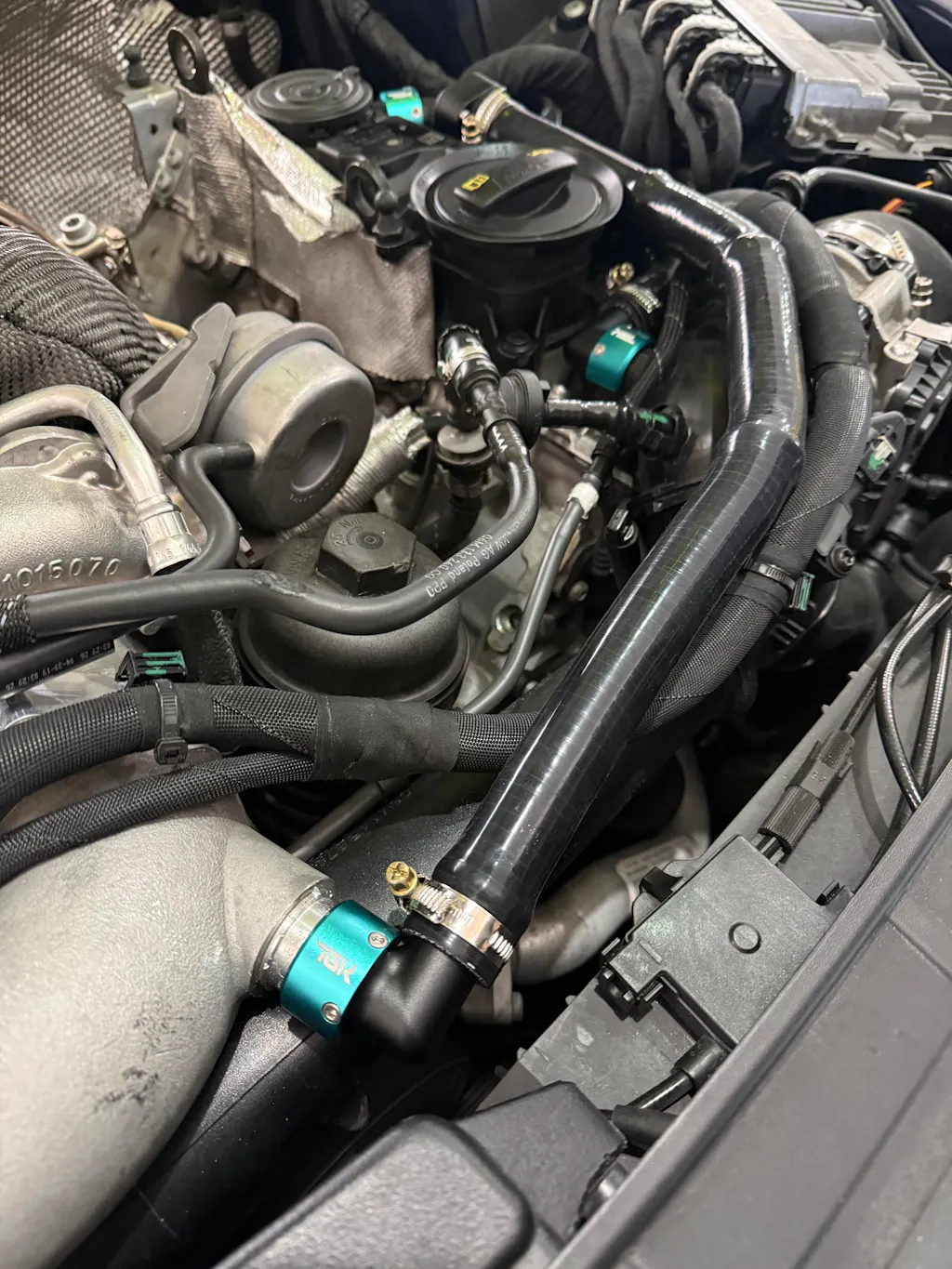

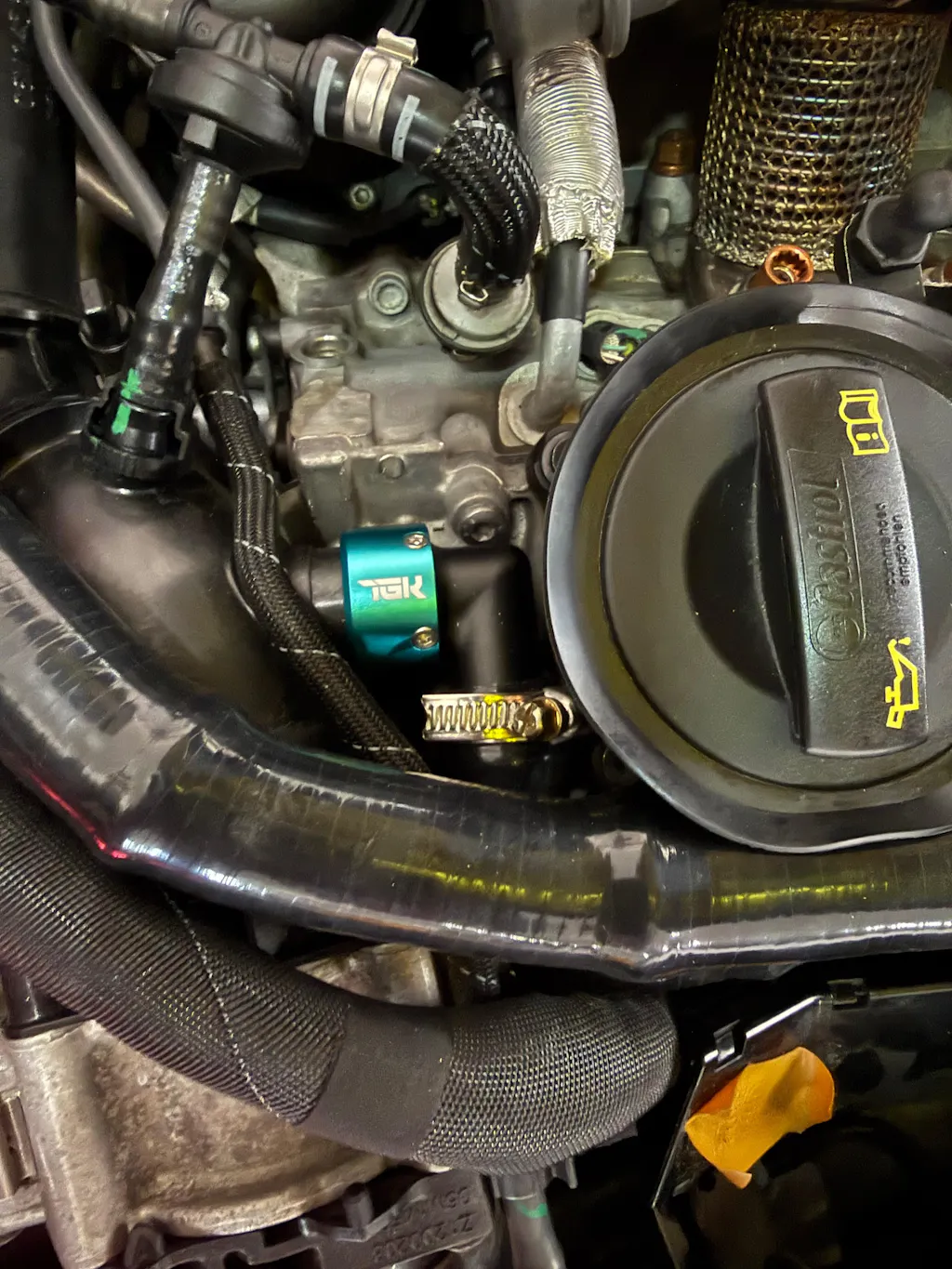

The assembly integrates directly with the factory air-oil separator and engine cover while retaining both OEM vacuum reference points: post-throttle vacuum and turbo inlet vacuum. No rerouting, adapters, or compromises to crankcase system logic.

How It Functions

At idle and during light load, crankcase vapors are drawn through the post-throttle vacuum source, maintaining proper vacuum and evacuation efficiency.

Under boost, the piston check valve immediately seals that path and redirects crankcase flow to the turbo inlet vacuum source. This prevents boost from entering the crankcase while maintaining consistent pressure control at elevated load.

The system behaves exactly as intended—without restriction, delay, or pressure bleed-through.

Built for Long-Term Reliability

This is not a short-term fix or cosmetic upgrade. The TGK Motorsport Billet PCV Breather Hose Assembly is engineered to support everything from stock daily drivers to high-boost, tuned EA839 applications without degradation over time.

Billet aluminum fittings, piston-style check valves, and FKM-lined silicone construction make this a permanent solution—not another consumable plastic failure waiting to happen.
